Independent Research · Physics × AI Agents

A Hologram, Without Touching a Laser

A 49-page design study for a glowing image that floats in open air - its physics, optics, control loops and bill of materials - computed end to end by a stack of open-source physics simulators driven by an AI agent. No optical bench. No laser ever switched on.

Every number here is computed, not measured. No device has been built. The claim is not "it works" - it's that there's no remaining physics reason it shouldn't, and what's left is engineering and measurement.
Read the 49-Page Study View the Repository

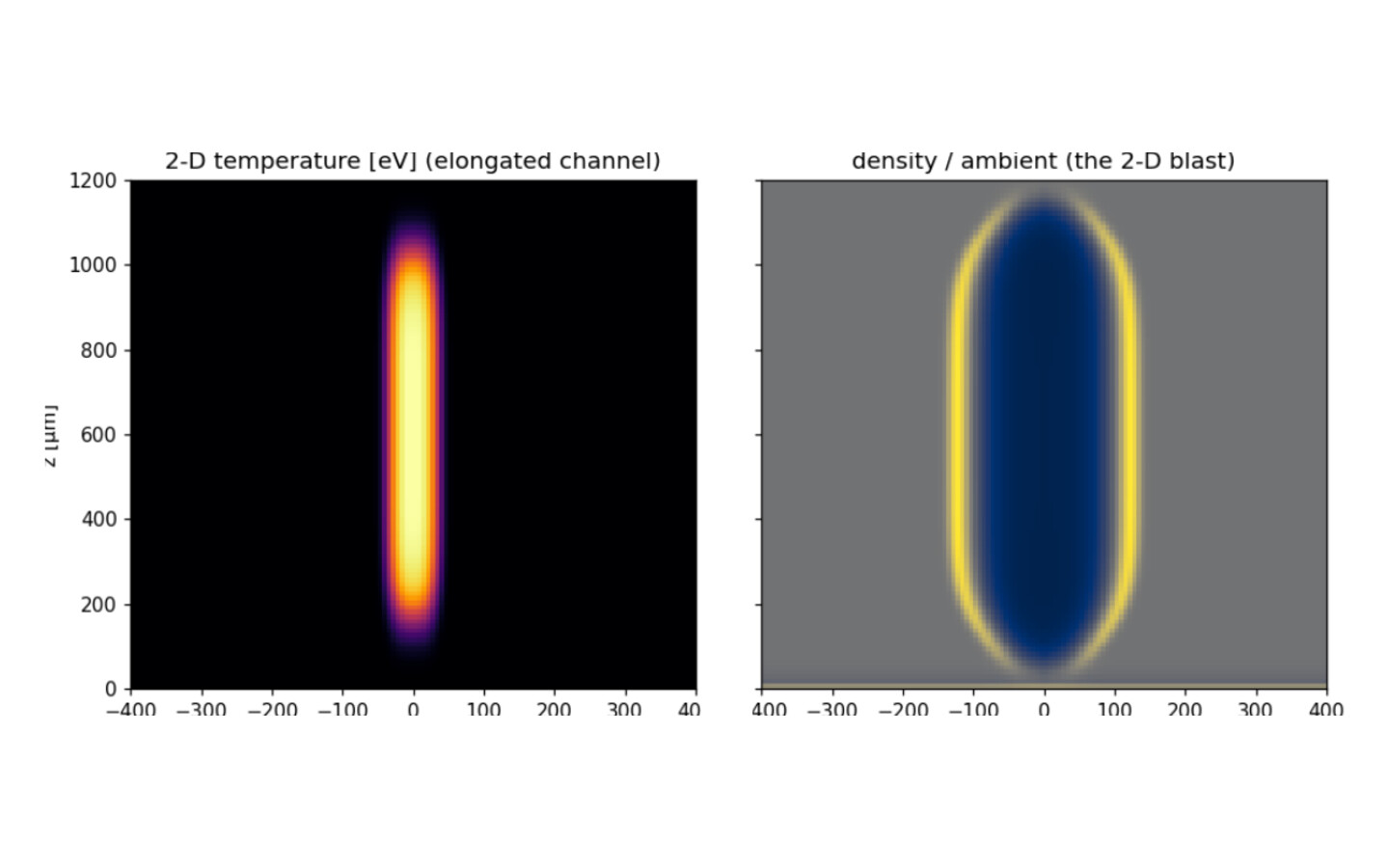

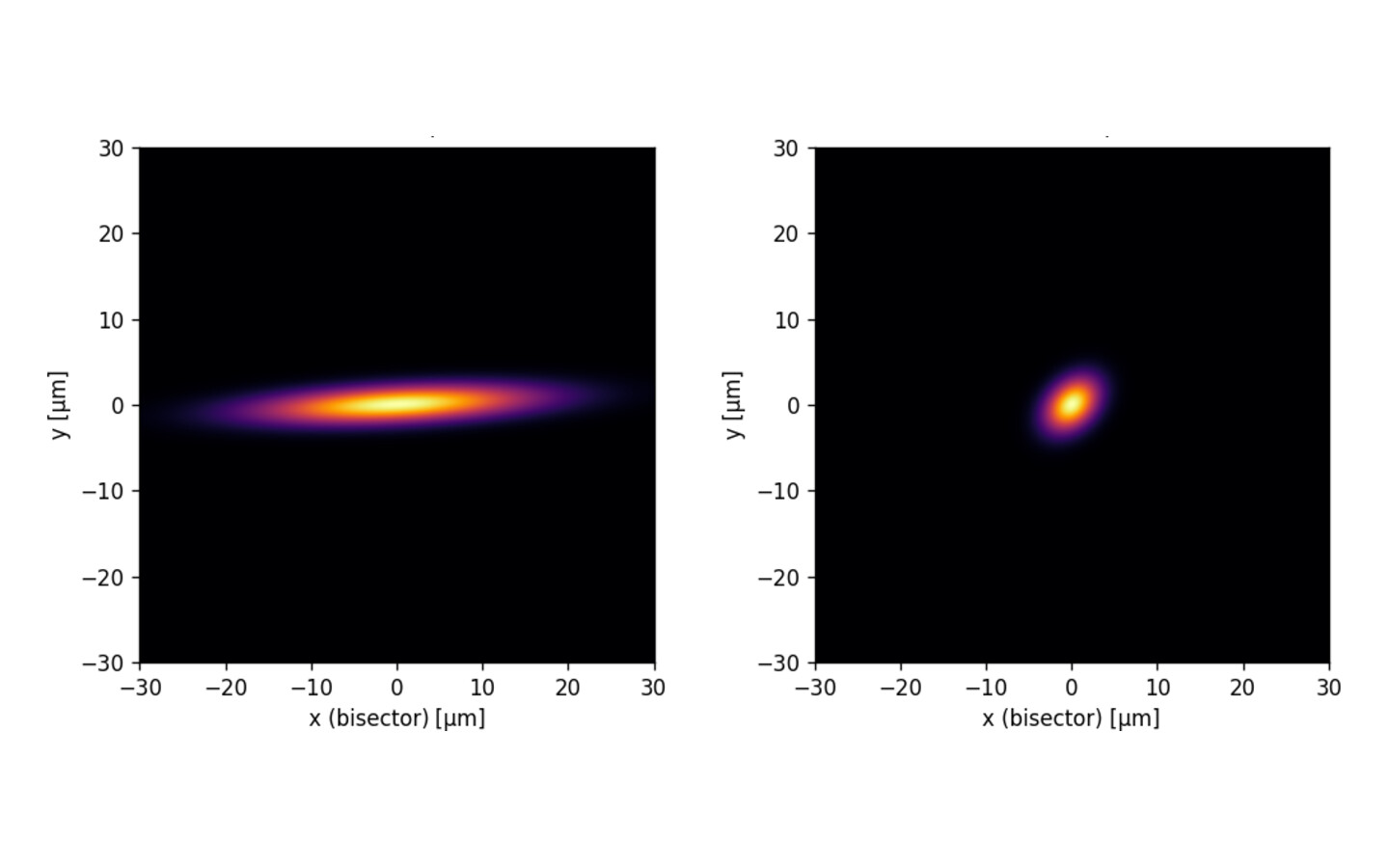

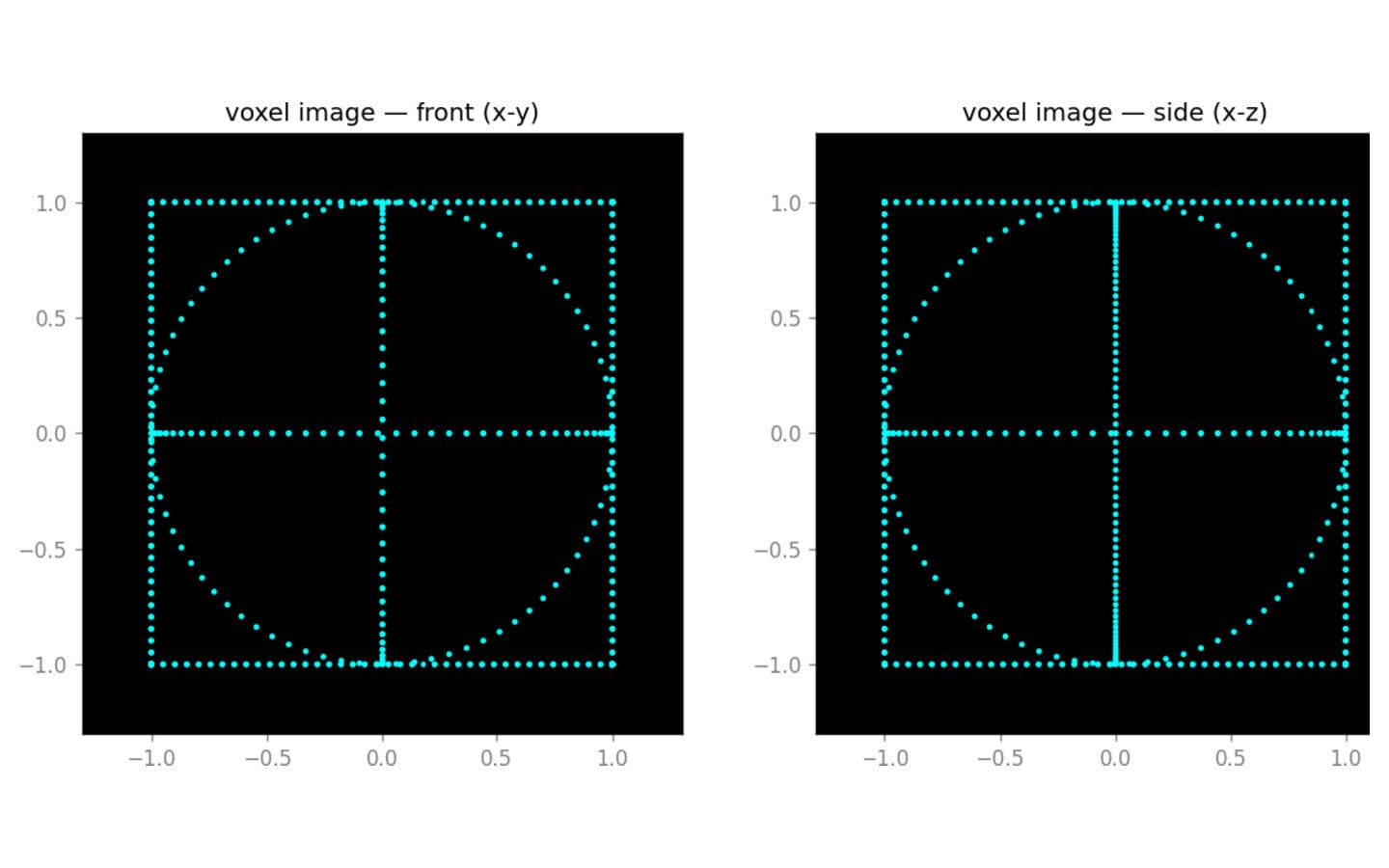

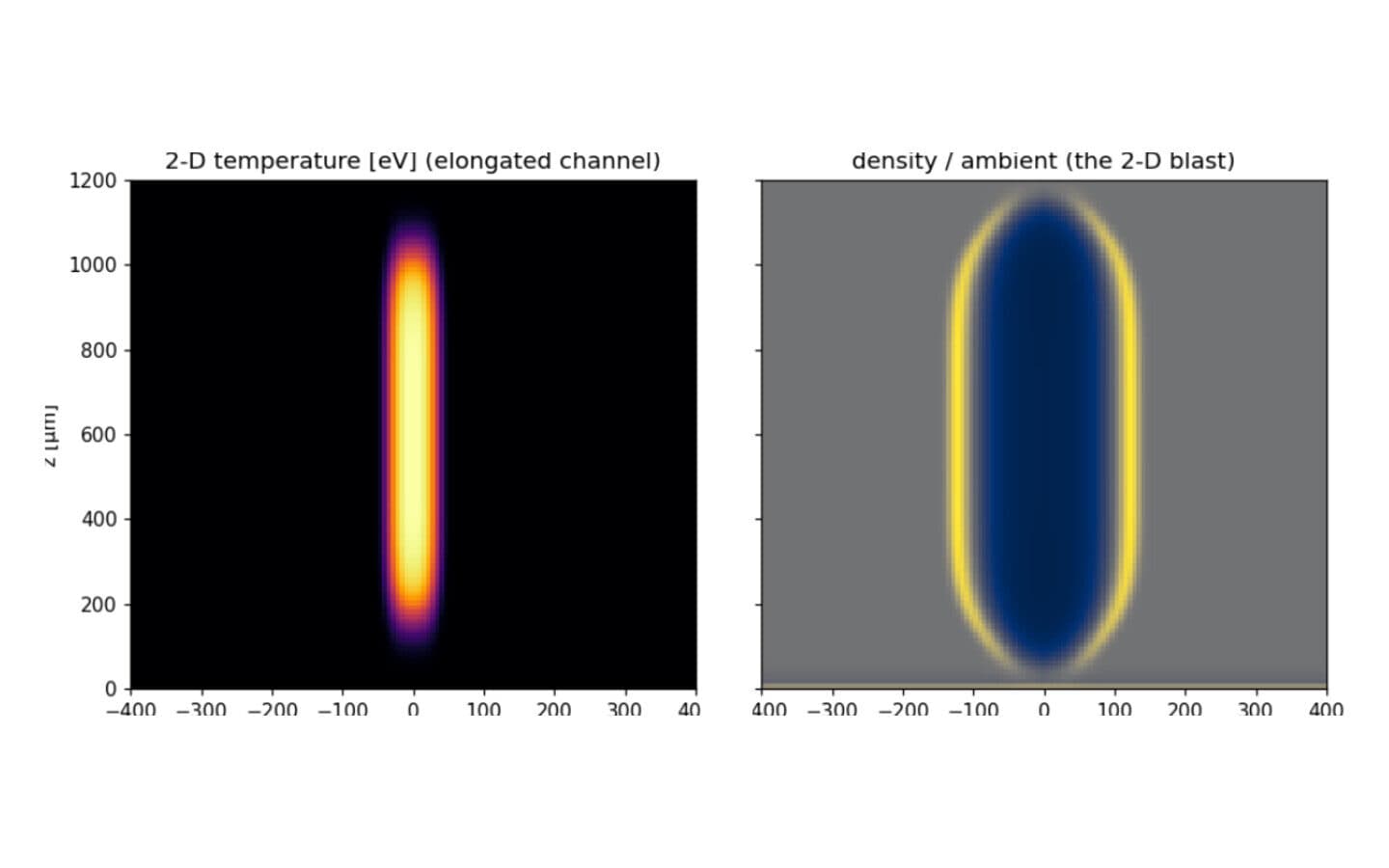

Computed voxel image - a cube-plus-sphere wireframe drawn in plasma sparks, front and side projection Computed voxel localization - as the two beams cross at a wider angle, the glowing core collapses from a streak into an addressable point Computed 2-D radiation-hydrodynamics of the laser-air spark - temperature, emissivity and the blast wave

Real output from the simulations - not renders. Left to right: a computed wireframe frame, the crossing-beam localization collapsing to a point, and the 2-D rad-hydro of a single spark.

~12
Open-source simulators, one agent loop
40+
Simulations across nine physics regimes
22
DOI-verified references, every number checked
3 days
For the bulk of the work (66 of 88 commits)
Why This Exists

You Can Automate What You Can Verify

Coding got automated first because you can run the test - the verifier was already there. So the real question is which other fields are already past that gate. Physics is one of them, and almost nobody had built the harness to exploit it.

The Answer Key Was Already Written

The constants are measured. The cross-sections are tabulated in HITRAN, LXCat and NIST. Most regimes have a closed-form limit you can check a number against. That isn't a benchmark someone still has to build - it's two centuries of physics, sitting in the open, ready to grade an answer.

Physics has always had the verifiability. What it lacked was an agent that could call the tools and check its own work against that record.

So We Built the Harness

A dozen open-source physics simulators, each in its own container, each wrapped so a single agent can call all of them. The loop proposes a configuration, runs the container, reads the resulting figure back, checks it against the literature, and decides what to run next.

Then we pointed it at one hard, cross-disciplinary question - can you draw a glowing image in mid-air? - to see how far it would get.

The Machine

An Agent That Runs a Lab

The physics is the subject. The deliverable is the method: a verifiable, reproducible agentic system that spans a dozen tools which barely share a vocabulary, let alone a data format. This is the part that transfers to any domain with an answer key.

01

One Container Per Simulator

No scientific dependency ever touches the host. Quantum chemistry in one container, particle-in-cell plasma codes in another, line-by-line radiative transfer in a third, custom radiation-hydrodynamics in a fourth - each with its own pinned toolchain.

02

One Tool Surface

Each simulator is wrapped as an MCP server, so the same agent calls all of them regardless of the language or runtime inside. A dozen incompatible codes become one uniform set of tools.

03

Five Explicit Roles

A planner proposes the next configuration, a coder writes the simulator input deck, a runner executes the container, an analyst loads results and plots them, and a critic checks units, convergence and physical plausibility before anything is trusted.

04

A Data Contract Across Regimes

Every quantity is unit-typed, so an energy can't be silently misread three containers downstream. Results serialize to typed datasets that become the explicit input to the next stage - every cross-regime hand-off auditable rather than assumed.

05

Provenance on Every Figure

Every run is tracked and keyed by configuration hash and container pin, so any figure in the 49 pages traces back to the exact parameters and code version that produced it. Reproducible by construction.

06

No Vendor Lock-In

The main loop runs on Claude Code. The repository also ships a fully local variant - the same planner, tools and analyst driven by a model on the workstation, no API key - to prove the architecture doesn't depend on any one provider.

The Detail That Mattered Most: The Figures Get Read Back

Generated plots aren't treated as finished artifacts - they're inspected as part of analysis. Several discrepancies between what was expected and what the physics actually produced were caught by looking at a light curve and thinking that shape is wrong. The agent writes the input deck, runs the container and reads the plot; the human's job becomes choosing which question is worth asking next, and refusing any answer that hasn't been checked against something real.

What It Found

The Device the Numbers Describe

Focus a laser hard enough and it rips electrons off the air at the focal point - a microscopic spark, a pixel with a real address in space. Move ten thousand of them sixty times a second and the eye sees a picture. Here is what the physics says about building one.

Two Beams, Harmless Until They Meet

A single beam strong enough to ionize air is strong enough to hurt an eye anywhere along its path. So the design crosses two beams, each individually too weak to spark anything - only their intersection lights up. Air breakdown scales as intensity to the eleventh power, so the crossing point ignites about 1023 times faster than anywhere along either beam. That isn't a preference; it's a switch that pins the glowing dot to one point in space.

  • The beams stay eye-safe along their paths; only the voxel ignites
  • A resonant two-colour scheme drops the required intensity ~18×
  • The obvious nitrogen channel turns out two-photon-dark - you only learn that by computing it

Bright Enough to See

A dark-adapted eye needs about 100 photons at the cornea. The computed voxel delivers around 184 - a conservative margin. And brightness climbs with plasma temperature at almost fixed energy: hotter plasma, not more power, is the cheap knob.

The Laser Is 3-8× Too Expensive

A prototype priced from real vendor catalogues comes to ~$378,000, more than half of it one femtosecond laser. But the physics only needs ~50 nJ per flash at sub-watt average power - a compact fibre source at $15k-$60k, not an industrial amplifier.

The Wavelengths Fell Out of the Chemistry

Tuning the two colours onto real quantum energy levels in oxygen and nitrogen is what buys the 18× efficiency. The recipe wasn't guessed - it came out of the quantum-chemistry calculation, dark channels and all.

Safe to Touch, Within Air Limits

The image is lit-up air - you can pass your hand through it. The ozone and nitrogen oxides a spark produces stay well inside health limits with modest ventilation. The delivery beams are still Class-4 and need boxing - a known engineering job.

A Wireframe, Not a Solid

At ~104 voxels the display draws line-and-point art - cubes, text, outlines - and the bottleneck is the scanner, not the voxel. A solid volume would need a hundred times the addressing rate. The sparse look is a consequence of the physics, not a style choice.

The Result We Threw Away

The Part That Matters Most

At one point a radiation-hydrodynamics run reproduced a real air-spark's light curve beautifully - exactly the figure you build a section around. It was wrong.

The Match Was an Artifact of a Bug

The solver wasn't conserving energy. Rebuilt properly, a spurious amplification factor collapsed from 1407× to 1.4×, and the beautiful agreement collapsed with it. The real glow had to be reassigned to entirely different physics.

The conclusion was withdrawn rather than defended. It sits in the paper described as what it was.

A Dead End, Published on Purpose

There's a tempting shortcut - skip the plasma, use cheap laser pointers, let dust scatter the light into a point. It was computed, and it cannot work: scattering is linear, so the beam glows along its whole path instead of at a point.

That failure is informative - it's exactly why the nonlinear plasma approach is the right one. Better to publish the dead end than quietly omit it.

A simulation campaign that never retracts anything isn't careful - it's unfalsifiable.

Why It's in Our Portfolio

The Method Is the Product

The whole point isn't the hologram. It's that a Tech Lead who is not a plasma physicist built a system that produced a rigorous, cross-checked physics study - because the verifier carried the domain knowledge, not the builder.

That's the same discipline we bring to client work: generation is cheap, so the edge lives in the scaffolding around it - the data contract, the provenance, the vendor independence, and a verifier that measures the thing you actually care about. Across everything we build, the moat is the verifier, not the generator. This is that thesis proven in the hardest possible place.

What Transfers to Your Domain

  • A repeatable agent loop over many tools, not a one-off prompt
  • A verifier gate, so the system checks its own work before you trust it
  • Full provenance - every output traces to its exact inputs and code
  • Vendor-independent by design, with a local fallback
  • The honesty to retract what doesn't survive the check

Open, and Checkable

The full manuscript, the LaTeX source, the simulation station and every container definition are public - code under the MIT license, paper and figures under CC BY 4.0. Every quantitative result is cross-checked against published literature or an analytic limit, with its uncertainty stated inline. Where a closed form exists, the computed number is checked against it: a nitrogen polarizability within 1.7% of reference, a breakdown field that recovers the textbook value, a maser threshold matched to machine precision. You don't have to take any of it on trust.

Have a Field With an Answer Key?

If your domain has measurements to check against - a simulator, a spec, a ground truth - it can be put behind a verifying agent loop. That's what we build. Read the study first, then let's talk about yours.
